7×5 Single Axle Tipper Trailer – 400mm sides

Galvanised

SKU: BT75HD400

$2,415 $2,145inc GSTSave $270
or from $15/week with Estimate only, on approved purchases through Ausloans. Conditions, fees and charges apply.
Deck length (mm)2130
Side height (mm)400
ATM — Aggregate Trailer Mass (kg)750
FinishHot-dip galvanised
Axle count1

✓ Inspect at our Seaford workshop — Mon–Fri 8am–4pm

About this trailer

Standard features

  • Cage (mesh / steel)
  • Jockey wheel
  • LED lighting (standard)
  • Removable sides
  • Tailgate
  • Tie-down rails / rope rails

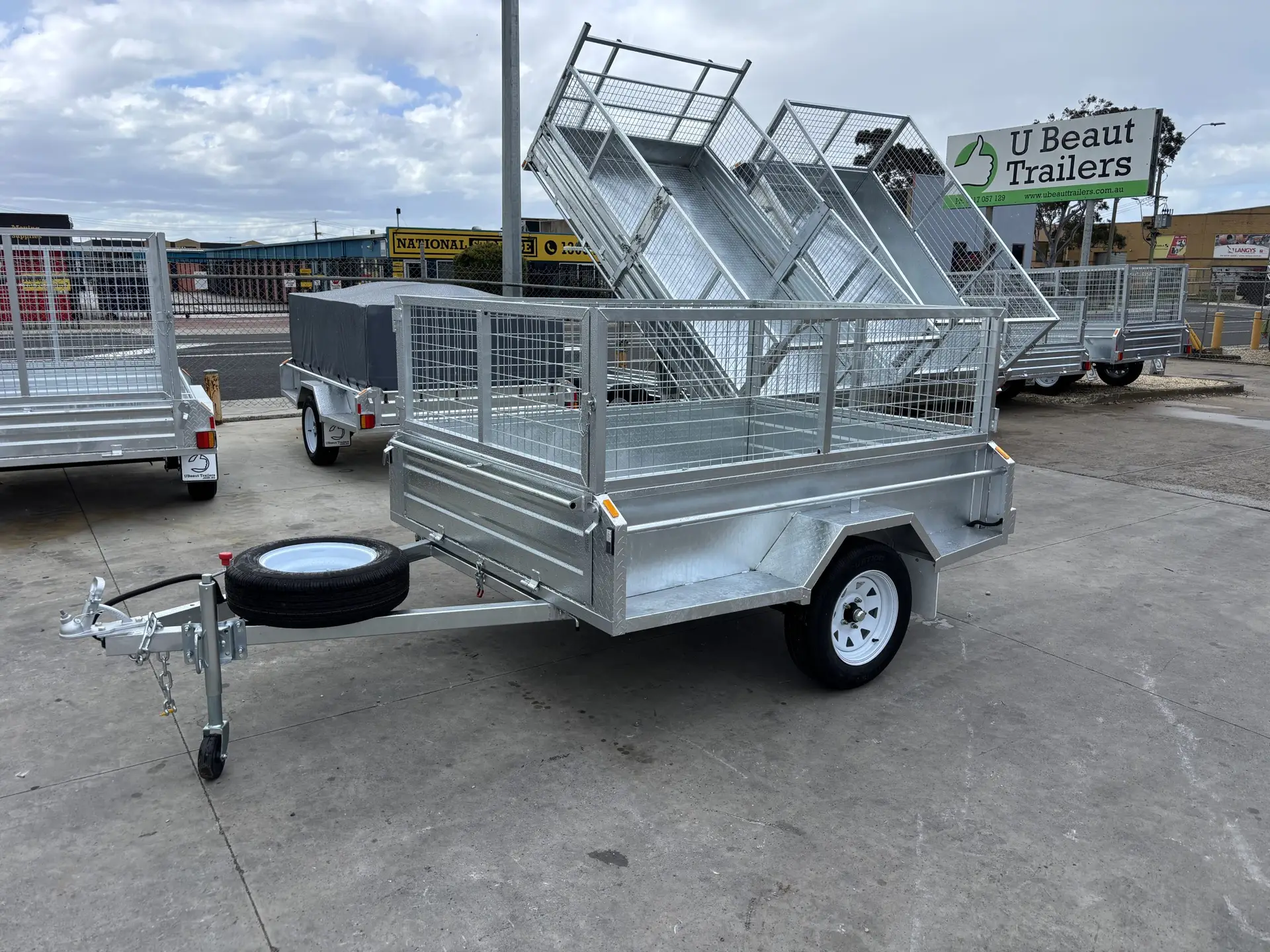

7’ × 5’ Single Axle Heavy Duty Galvanised  Tipper Trailer,  Checker Plate, 400mm sides

Features:

  • FREE jockey wheel
  • Hot dipped galvanised and fully welded
  • Floor is made from 2 pieces of seam welded  checker plate and is welded to chassis every 80-100mm and has been folded to make 400mm sides
  • Tie down rails welded on front/rear/sides
  • Frame is 50x50mm RHS
  • Front and rear tailgates that can be easily removed
  • 600mm cage with gates front and rear that can be easily removed, cage is fixed to trailer using 4 bolts
  • Drawbar is 70x50mm RHS with a length of 1400mm
  • Suspension is eye to eye heavy duty leaf springs
  • Axles are heavy-duty solid 40x40mm
  • Wheels and tyres are brand new 185/70 14 with Sunraysia style rims and are 5 stud pattern
  • LED tail lights
  • Mudflaps included
  • Flat or round trailer plug included
  • 1 year warranty on running gear, 3 year structural  warranty
  • Aggregate trailer mass (ATM) 750kg
  • All trailers comply with Australian design rules (ADR’s) 1989
  • Victorian registration done onsite
  • Prices include GST
Optional Extras
  • Spare tyre
  • Toolbox
  • H Bars / Ladder racks
  • Ramps

Full specifications

Dimensions
Deck length (mm)2130
Deck width (mm)1525
Side height (mm)400
Cage height (mm)600
Weights & ratings
Tare / empty weight (kg)280
ATM — Aggregate Trailer Mass (kg)750
Payload capacity (kg)750
Construction
Chassis materialGalvanised RHS
Frame size (RHS)50x50mm RHS
FinishHot-dip galvanised
Floor typeChecker plate
Axle count1
Axle rating (kg, per axle)750
Axle size40x40mm
Suspensioneye to eye heavy duty leaf springs
Wheel / tyre spec185/70 on 14 x 5.5
BrakesUnbraked
Drawbar70x50mm RHS with a length of 1400mm
Coupling type50mm ball
Wiring7-pin flat

Options & upgrades

Enquire about selected options
