8×5 Single Axle Tipper Trailer – 400mm sides

Galvanised

SKU: BT85HD400

$2,620 $2,395inc GSTSave $225
or from $17/week with Estimate only, on approved purchases through Ausloans. Conditions, fees and charges apply.
Deck length (mm)2440
Side height (mm)400
ATM — Aggregate Trailer Mass (kg)750
FinishHot-dip galvanised
Axle count1

✓ Inspect at our Seaford workshop — Mon–Fri 8am–4pm

About this trailer

Standard features

  • Cage (mesh / steel)
  • Jockey wheel
  • LED lighting (standard)
  • Removable sides
  • Tailgate
  • Tie-down rails / rope rails
8’ × 5’ Single Axle Heavy Duty Galvanised Trailer,  Checker Plate, 400mm sides
  • FREE jockey wheel
  • Hot dipped galvanised and fully welded
  • Floor is made from 2 pieces of seam welded 2.5mm checker plate and is welded to chassis every 80-100mm and has been folded to make 400mm sides
  • Tie down rails welded on front/rear/sides
  • Frame is 50x50x2.5mm RHS
  • Front and rear tailgates that can be easily removed

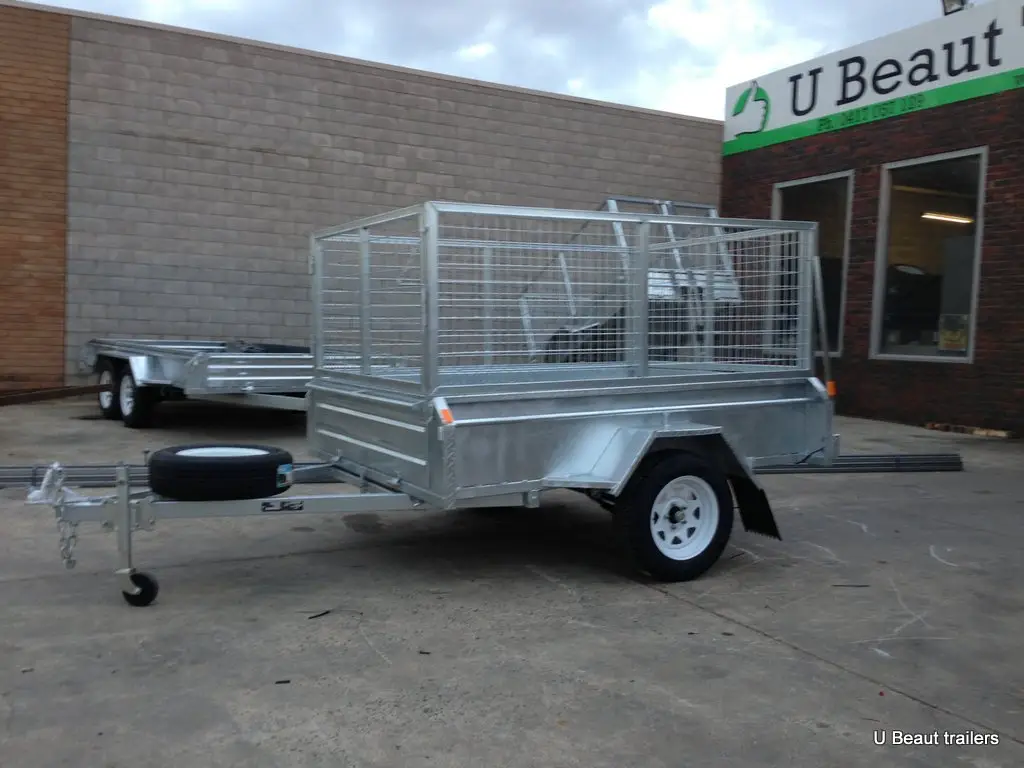

  • 600mm cage (note picture shows 800mm cage) with gates front and rear that can be easily removed (cage is fixed to trailer using 4 bolts  so it can be removed/replaced in 5 mins)
  • Drawbar is 70x50x2.5mm RHS with a length of 1400mm
  • Suspension is eye to eye heavy duty leaf springs
  • Axles are heavy-duty solid 40x40mm
  • Wheels and tyres are brand new 14inch steel mag wheels with 185/70 tyres and are Ford 5 stud pattern
  • LED tail lights and wiring included (so you never have to worry about blown bulbs again), reflectors included
  • Mudflaps included
  • Flat or round trailer plug included
  • Tare 315kg
  • Capacity (ATM) 750kg
  • All trailers comply with Australian design rules (ADR’s) 1989
  • Victorian registration done onsite
  • Prices include GST
Optional Extras
  • Spare tyre
  • Toolbox
  • H Bars / Ladder racks
  • Ramps

Full specifications

Dimensions
Deck length (mm)2440
Deck width (mm)1525
Side height (mm)400
Cage height (mm)600
Weights & ratings
Tare / empty weight (kg)315
ATM — Aggregate Trailer Mass (kg)750
Payload capacity (kg)750
Construction
Chassis materialGalvanised RHS
Frame size (RHS)50x50x2.5mm RHS
FinishHot-dip galvanised
Floor typeChecker plate
Floor thickness2.5mm
Axle count1
Axle rating (kg, per axle)750
Axle size40x40mm
Suspensioneye to eye heavy duty leaf springs
Wheel / tyre spec185/70 on 14 x 5.5
Drawbar70x50x2.5mm RHS with a length of 1400mm
Coupling type50mm ball
Wiring7-pin flat

Options & upgrades

Enquire about selected options
