8×5 Single Axle/ Heavy Duty

$ 1,895.00

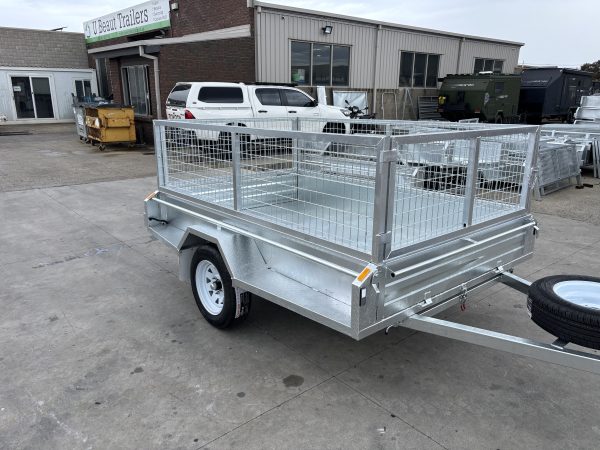

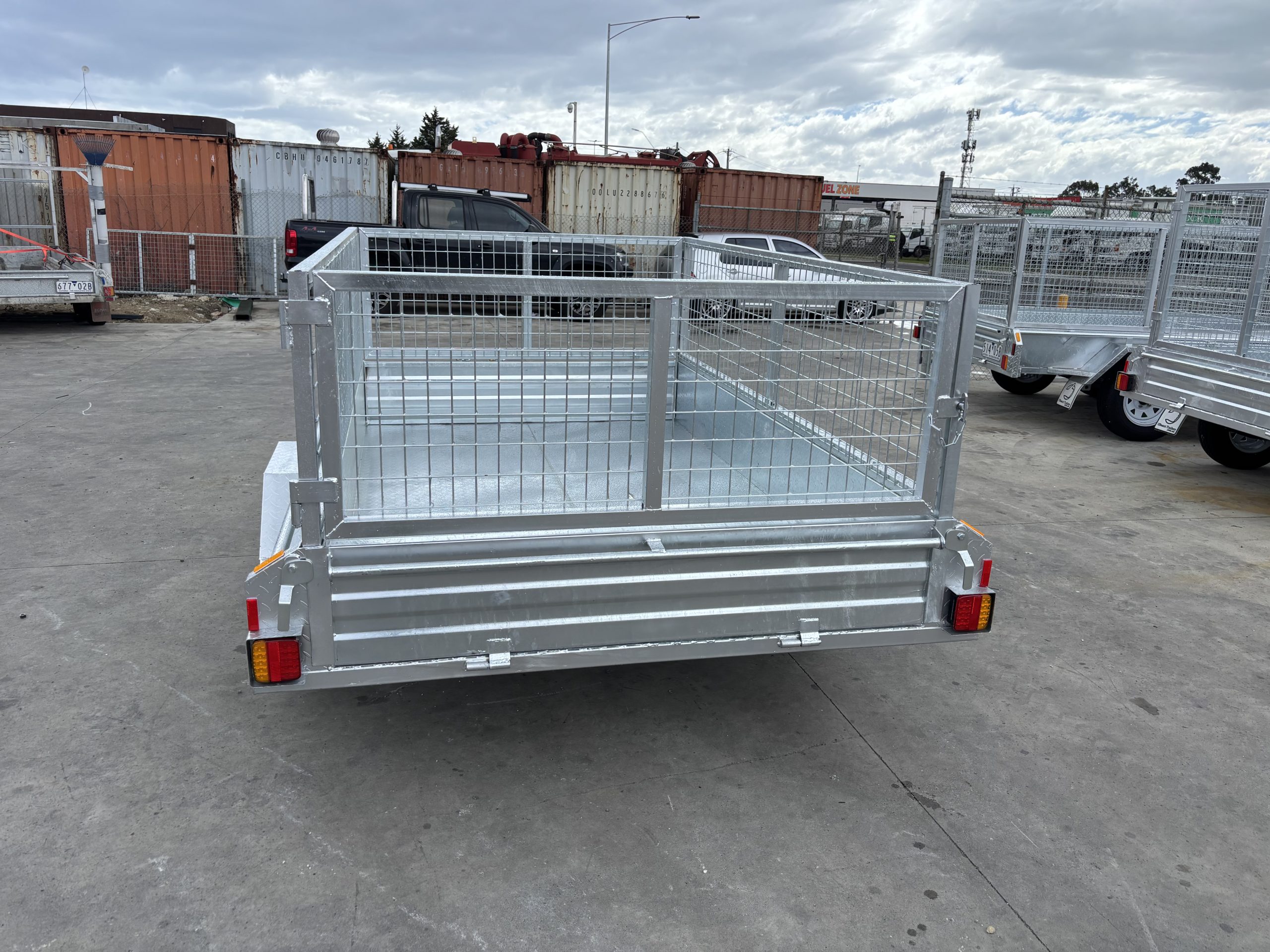

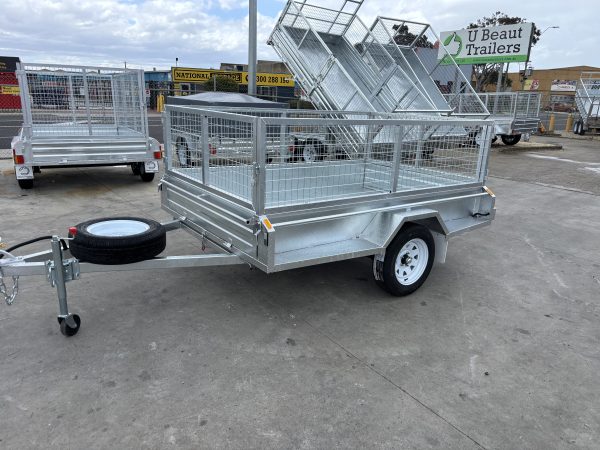

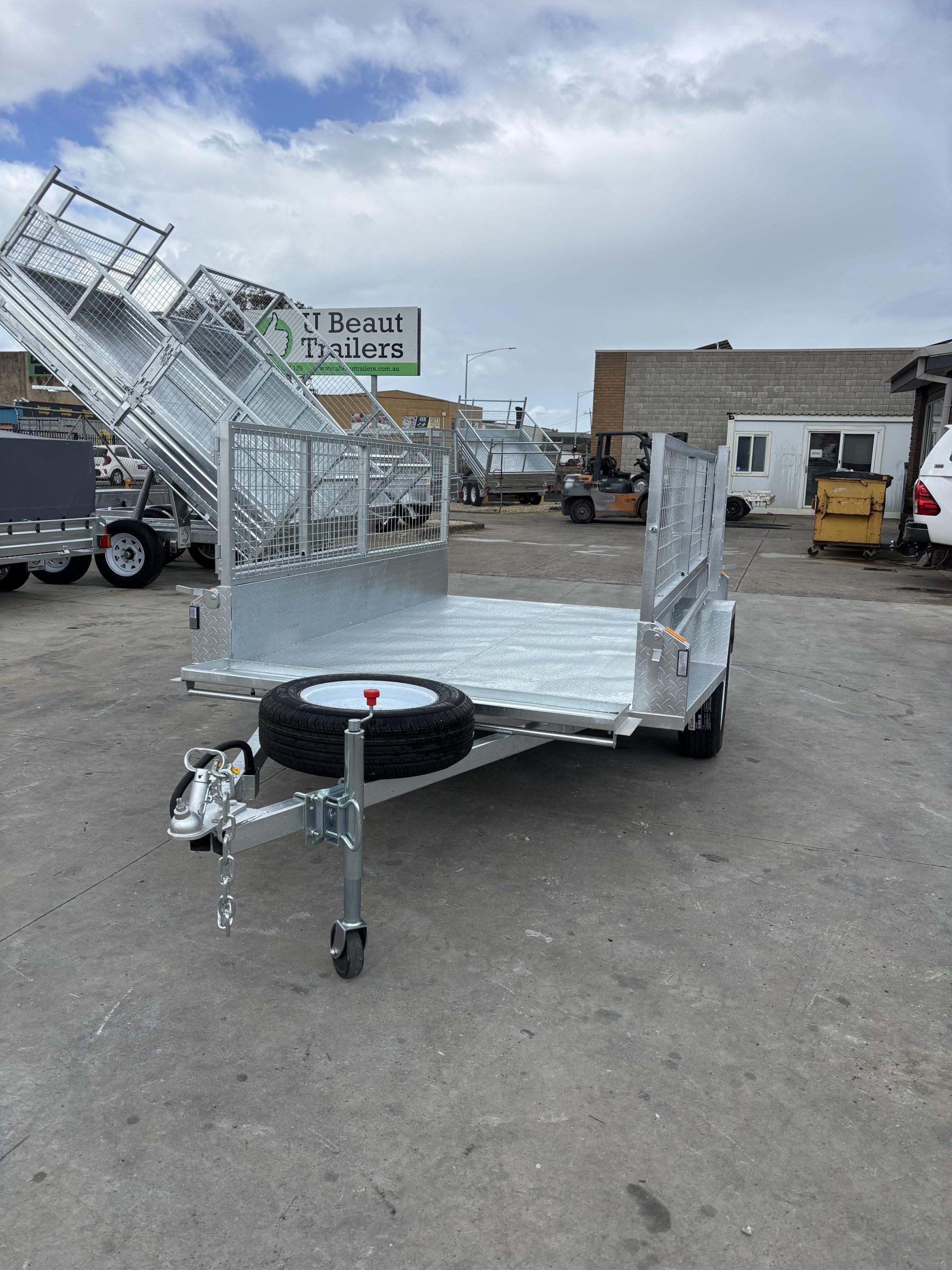

8 ’× 5’ Heavy Duty Single Axle Tipper Trailer, Galvanised Checker Plate, 300mm sides

SKU: BT85HD300 Categories: , ,


8 ’× 5’ Heavy Duty Single Axle Tipper Trailer, Galvanised Checker Plate, 300mm sides


* FREE jockey wheel
* Hot dipped galvanised and fully welded
* Floor is made from 2 pieces of seam welded 2.5mm checker plate and is welded to chassis every 80-100mm and has been folded to make 300mm sides
* Tie down rails welded on front/rear/sides
* Frame is 50x50x2.5mm RHS with spacing of 300mm
* Front and rear tailgates that can be easily removed
* 1000mm cage with gates front and rear that can be easily removed (cage is fixed to trailer using 4 bolts and 2 stabilizer bolts so it can be removed/replaced in 5 mins)
* Drawbar is 70x50x2.5mm RHS with a length of 1400mm
* Suspension is eye to eye heavy duty leaf springs
* Axles are heavy-duty solid 40x40mm
* Wheels and tyres are brand new 14inch steel mag wheels with 185/70 tyres and are Ford 5 stud pattern – can upgrade to Land Cruiser 6 stud wheels or other types – just ask for quote
* LED tail lights and wiring included (so you never have to worry about blown bulbs again), reflectors included
* Mudflaps included
* Flat or round trailer plug included
* Tare 310kg
* Capacity (ATM) 750kg
* All trailers comply with Australian design rules (ADR’s) 1989
* Lockable toolbox can be fitted for $ 270 (see photo)
* Spare wheel can be added for $ 110
* U Beaut Trailers is a registered online dealer. Registration can be offered to Victorian licence holders for an additional cost of $ 145
* Prices include GST

Additional information






Axle Load Capacity




Wheel Rim Size

Tyre Size


Max Speed
